Single cylinder cone crusher

product description

Introduction of single cylinder cone crusher:

The FKD series single-cylinder cone crusher produced by Phoenix Mining Equipment (Shanghai) Co., Ltd. has the characteristics of optimized structural design, outstanding crushing capacity, reliable stability and low production and operation costs. Single-cylinder hydraulic cone crusher realizes various functions such as ore discharge adjustment, cavity cleaning, iron overload and overload protection through a single hydraulic cylinder lifting and moving cone. Single-cylinder hydraulic cone crusher can be widely used in various black, colored, non- Industrial fields such as metal mines and gravel.

The principle of single cylinder cone crusher:

When the empty machine is running, the eccentric sleeve assembly "holds" the spindle assembly and revolves with the large gear. When the material is added to the crushing chamber, the spindle assembly (spindle, inner cone) is slowly in the eccentric copper sleeve under the resistance of the material Rotation. The running trajectory of the inner cone seems to swing back and forth in the crushing cavity while rotating slowly. The material is crushed by the swinging inner cone. The connection between the support sleeve and the frame body is pressed by the hydraulic cylinder. When the metal block and other unbreakable objects fall into the crusher, the moving cone of the single cylinder is lifted by the hydraulic piston at the bottom, which plays the role of discharge port adjustment and iron protection. Lifting and removing the function of blocking the mine.

The adjustment of the size of the discharge port: the first function of the bottom hydraulic cylinder is to adjust the up and down position of the main shaft, thereby adjusting the spacing between the moving cone and the outer cone lining plate. The smaller the spacing, the smaller the output size of the crusher; the larger the spacing, the larger the output size of the crusher. At the same time, choosing different crushing cavity types and different eccentric sleeves can also change the material discharge size.

Features of single cylinder cone crusher:

1. The upper and lower ends of the main shaft of FKD series single-cylinder cone crusher are supported, can withstand greater crushing force and greater stroke, plus the special crushing cavity shape suitable for the lamination principle, compared with ordinary cone crusher With higher crushing efficiency;

2. The FKD single-cylinder hydraulic cone crusher combines the perfect combination of crushing stroke, crushing speed and crushing chamber shape, so that the output of the machine is 35% higher than that of the old-fashioned spring cone crusher when the diameter of the large end of the moving cone is the same. %;

3. The hydraulic cone crusher adopts the unique crushing cavity shape and lamination crushing principle to produce the crushing effect between the particles, so that the proportion of cubes in the finished product is significantly increased, the needle flakes are reduced, and the particle size is more uniform;

4. FKD single-cylinder cone crusher has medium and fine crushing with multiple cavity shapes, which can be achieved only by replacing the fixed cone;

5. The hydraulic and lubrication system with double insurance control can ensure the overload protection and good bearing lubrication of the machine;

6. Easy maintenance: The single-cylinder cone crusher is simple and compact in structure, stable in performance, not easy to malfunction, and convenient and fast in maintenance.

Single cylinder cone crusher parameters:

Model	Power （kw）	Chamber Type	Max Feed Size （mm）	CSS Discharge Opening &Standard Capacity（t/h）
Model	Power （kw）	Chamber Type	Max Feed Size （mm）	6	8	10	13	16	19	22	25	32	38	44	51
FKD-44	250	Supper Coarse	217	-	-	-	-	115-202	123-279	132-297	140-316	160-360	177-399	-	-
		Coarse	177	-	-	-	102	110-220	118-295	126-316	135-336	153-382	169-339	-	-
		Medium Coarse	142	-	-	-	98-124	107-266	115-286	122-305	130-325	148-333	163-245	-	-
		Medium	112	-	-	-	119-190	128-283	138-303	148-324	157-345	179-286	198	-	-
		Medium Fine	87	-	-	117	127-232	137-251	147-269	157-288	167-306	190-254	-	-	-
		Fine	72	-	93-139	99-181	107-196	115-212	123-227	133-243	141-258	160-214	-	-	-
		SupperFine	40	100	125	-	-	-	-	-	-	-	-	-	-
FKD-53	315	Supper Coarse	280	-	-	-	-	180	193-344	207-444	220-472	250-557	277-616	303-674	334-520
		Standard Supper	250	-	-	-	-	178-198	191-382	204-498	216-530	247-604	273-667	299-532	330-361
		Coarse	220	-	-	-	-	175-194	188-376	201-491	214-522	244-596	269-658	295-524	324-361
		Medium Coarse	180	-	-	-	-	167-260	179-438	191-468	204-498	232-568	256-513	281-374	-
		Medium	140	-	-	-	-	204-306	219-456	234-487	249-519	284-521	313-418	-	-
		Medium Fine	120	-	-	-	200	216-385	232-413	247-441	263-470	299-471	332-379	-	-
		Fine	90	-	-	-	206-322	222-347	238-373	255-398	271-424	309-425	342	-	-
		Supper Fine	70	-	-	-	227-316	244-340	263-321	281-312	-	-	-	-	-
FKD-870	500		80-330	1、Adjustment Range Of Discharge Opening 10-60mm 2、Capacity 500-1200t/h 3、Weight 59t

Model	Power （kw）	Chamber Type	Max Feed Size （mm）	CSS Discharge Opening &Standard Capacity（t/h）
Model	Power （kw）	Chamber Type	Max Feed Size （mm）	19	22	25	29	32	35	38	41	44	48	51
FKD-44S	250	Supper Coarse	400	-	-	-	-		267	282-353	298-446	313-563	334-601	349-534
		Coarse	350	-	-	-	225	239-299	254-381	269-484	284-511	298-448	318-398	333
		Medium Coarse	300	-	-	195	214-267	228-342	242-435	256-461	270-486	284-426	303-378	317

Model	Power （kw）	Chamber Type	Max Feed Size （mm）	CSS Discharge Opening &Standard Capacity（t/h）
Model	Power （kw）	Chamber Type	Max Feed Size （mm）	38	41	44	48	51	54	60	64	70	76	83
FKD-53S	315	Supper Coarse	450	-	349	368-460	392-588	410-718	428-856	456-929	489-978	525-1050	562-983	604
FKD-53S	315	Coarse	400	318	336-420	353-618	376-753	394-788	411-823	446-892	469-822	504-631		-

Note: Parameters are subject to update without notice, please contact us.

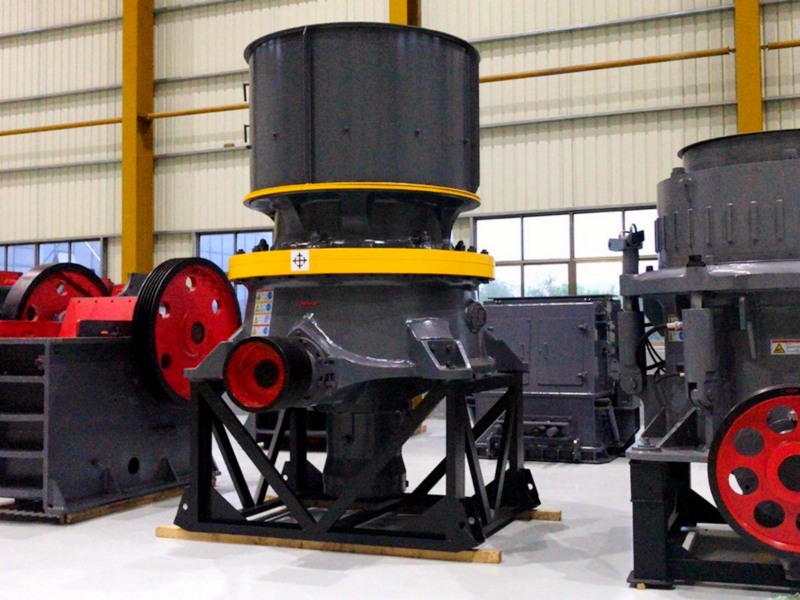

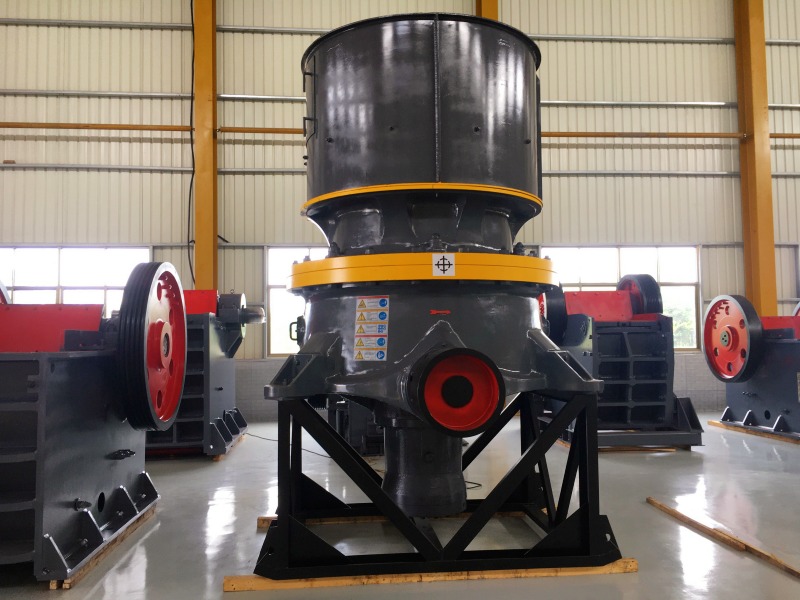

Picture of single cylinder cone crusher:

Single cylinder cone crusher product sample download:
Single cylinder cone crusher product sample
